Shift the flood

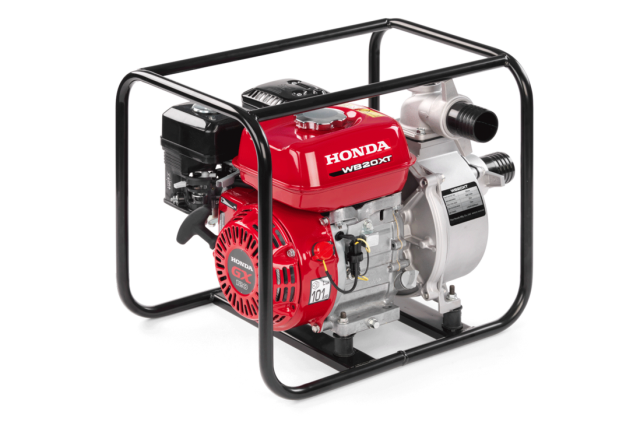

WB20 Water Pump

For professionals up against it, our High flow rate water pumps have commercial features for moving large amounts of water – fast.

Pumps 600 litres a minute with 3.2 bar of pressure and a 2 hours 50 minutes running time.

At a Glance:

Cast iron water pump pushes 600 litres per minute, debris up to 6mm, and a total head of 32m.

Max output: 600-1100 L/min

Run time: 2h50 Approx

Total head: 28-32 Metres

Pressure: 2.8-3.2 Bars

Price: €529.00

Features

Robust and durable

Our High flow rate pumps are powered by our commercial grade GX engine. Equipped with specially-designed professional features, including the ability to deal with silt and sand, they’re perfect for use on construction sites or for clearing floodwater.

High volume water

Designed with an abrasion-resistant cast iron volute and impeller, our High flow rate pumps have specially designed vanes for a larger discharge capacity. This means they can move up to 1100 litres a minute – that’s the capacity of an average-sized swimming pool in under an hour and a half.

Dirty water

As well as their solid iron parts, our High flow rate water pumps use durable silicon carbide mechanical seals. Both of these features provide extra durability for handling water containing debris up to 6mm in size. There’s even a strainer to ensure nothing bigger gets through.

Sealed system

What makes our High flow rate pumps so effective is the craftsmanship of the hose seals and O-rings – they ensure air can’t be drawn in, which causes the all-important vacuum to be lost. The impeller-to-volute clearance has also been designed in this way. It all means they not only have an impressive flow rate and pressure – but they can keep it up; they can go for up to 2 hours 50 minutes before you need to add more petrol.

Tough build

Our OHV 4-stroke engines won’t let you down. Our water pump engines are reliable and have low emissions – automatic decompression makes them so quick and easy to start. To keep everything in check, they also have Oil Alert™. This prevents engine damage by automatically shutting the unit down if the oil drops below a safe level.

Oil Alert

To keep everything in check, they also have Oil Alert™. This prevents engine damage by automatically shutting the unit down if the oil drops below a safe level.

Frame protection

Our water pumps’ heavy-duty full frame offers protection to the unit as well as a handy handle for transportation. Anti-vibration straight engine rubber mounts reduce mechanical stress on the unit, so it hums away nicely without juddering or making a racket.

Specifications

Pump
Maximum output capacity (L/min) 620
Inlet/outlet diameter thread type (mm/inches) 50/2-PF
Total head (m) 32
Suction head (m) 7.5
Pressure (bars) 3.2
Debris size capacity (mm) 6
Engine
Engine Model GX120
Engine type 4-stroke, OHV,** 1 cylinder
Displacement (cm³) 118
Bore x stroke (mm) 60 x 42
Engine speed (rpm) 3600 max
Engine net power (kW) 2.6
Cooling system Forced air
Ignition system Transistor
Oil capacity (L) 0.6
Fuel tank capacity (L) 2
Operating time 1h42 approx
Starter system Recoil
Sound pressure level at workstation (dB(A)) 88
Guaranteed sound power level (dB(A)) 102
Dimensions
Length (mm) 455
Width (mm) 365
Height (mm) 420
Dry weight (kg) 21
