Getting stuck in

TRX500FA6

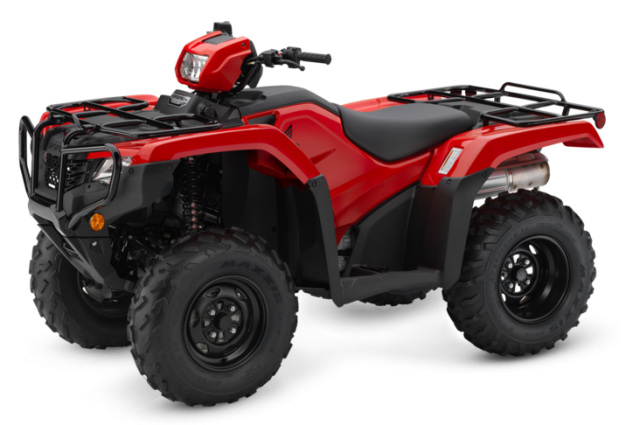

TRX500FA6: Go-anywhere, do-anything tool, with faster, smoother gear changes plus independent double-wishbone rear suspension and power steering.

At a Glance:

The ATV that just loves to get stuck in. The TRX500 is a heavy-hitting ATV built for hard work and hauling big loads – day in, day out.

Engine: 475cc Fuel-injected liquid-cooled engine.

Up to 600kg Towing Capacity

Option: Automatic DCT, Power Steering, IRS

RRP: €12,199.00

Features

High power vision

Ready for whatever you’re doing, the 500’s triple headlight system uses a single 45-watt upper bulb and dual 30-watt lower bulbs with multi-reflector lenses for optimal light distribution, plus an LED brake light/taillight for improved visibility.

Switchable 2/4wd for go-anywhere traction

TraxLok® lets you easily select 2wd or 4wd. 2wd gives lighter steering on flat ground while 4wd maximizes traction when you need it.

Fuel injection

The PGM-FI fuel injection system – with 36mm throttle body – provides instant and crisp throttle response, consistent performance at altitude and hassle-free cold-weather starting.

Power Steering

Power Steering helps eliminate bump steer and lessons steering effort, particularly over rocks, logs and on sidehills.

Wide gear ratios

The working day can bring many challenges. Five forward gears, including an ultra-low first – plus reverse – mean you’ve got plenty of pulling power. true engine braking also helps maintain control.

Automatic DCT

Honda’s Automatic DCT transmission offers strong internals, fast shifts, excellent control, true compression braking capability in steep terrain and an automatic programme that upshifts ans downshifts while you concentrate on riding.

Disc brakes

The IRS model offers disc brakes all around for excellent performance.

Total efficiency for every job.

The engine is longitudinally-mounted. With the crankshaft in line with the frame you get direct driveshaft alignment to the wheels, improved drivetrain efficiency and a low centre of gravity. And it’s a major contributor to great stability, handling and balance, all features you expect from a Honda ATV.

Let's get a shift on

The massively strong steel swingarm allows 185mm rear wheel travel. Adjustable spring preload ensures well-controlled power delivery as well as increased comfort, precision and work capability.

Difference in the detail

It’s Honda’s careful attention to detail that sets our ATVs apart from the rest.

  • Brakes: Dual front discs feature brake calipers with a patented built-in scraper system to remove mud and snow.
  • Radiator: Large radiator and fan ensure optimal cooling under tough operating conditions.
  • Starting: Electric starting also features auxiliary recoil.
  • Suspension: Independent double-wishbone front suspension ensures smooth progress over rough terrain.
  • Exhaust: Exhaust and muffler are stainless steel for long-term durability.
  • Cargo racks: Large racks feature an improved design for easier lashing of cargo.
  • Trailer hitch: Axle-mounted, heavy-duty trailer hitch with up to 600kg towing capacity.
  • Storage: Rear-opening storage compartment allows access when the rack is loaded and there’s a water-resistant left-side glovebox.
  • Accessory socket: Waterproof accessory socket provides 12-volt, 10-amp power.
  • Floor: Unique floorboards allow the rider’s feet to grip the footrests while keeping away mud and debris.

Specifications

Specification
Engine 475cc liquid cooled, wet sump, longitudinally mounted OHV 4-stroke single cylinder
Carburation PGM-Fi 36mm throttle-body fuel injection system
Ignition Full-transistorized with electronic advance
Starter Electric with auxiliary recoil
Transmission Automatic transmission (Dual Clutch) with five forward gears with reverse, auto-shifting or electric shift
Drive Direct front and rear driveshafts with TraxLok™ 2/4wd selection and pushbutton front differential lock.
Front Suspension Independent double-wishbone 185mm travel, preload adjustable
Rear Suspension Independent double-wishbone 185mm travel, preload adjustable
Power Steering Yes
Front Brakes 190mm dual hydraulic discs
Rear Brake 170mm single hydraulic/mechanical disc
Front tyres 25 x 8-12 radial
Rear tyres 25 x 10-12 radial
Fuel Capacity (l) 14.7L, incl. 4.9L reserve
Bore x Stroke (mm) 92.0 × 71.5 mm
Dimensions - Length (mm) 2147
Dimensions - Width (mm) 1205
Dimensions - Height (mm) 1237
Wheelbase (mm) 1292
Seat Height (mm) 911
Ground Clearance (mm) 241
Towing Capacity (kg) 600
Front Rack Capacity (kg) 45
Rear Rack Capacity (kg) 85
